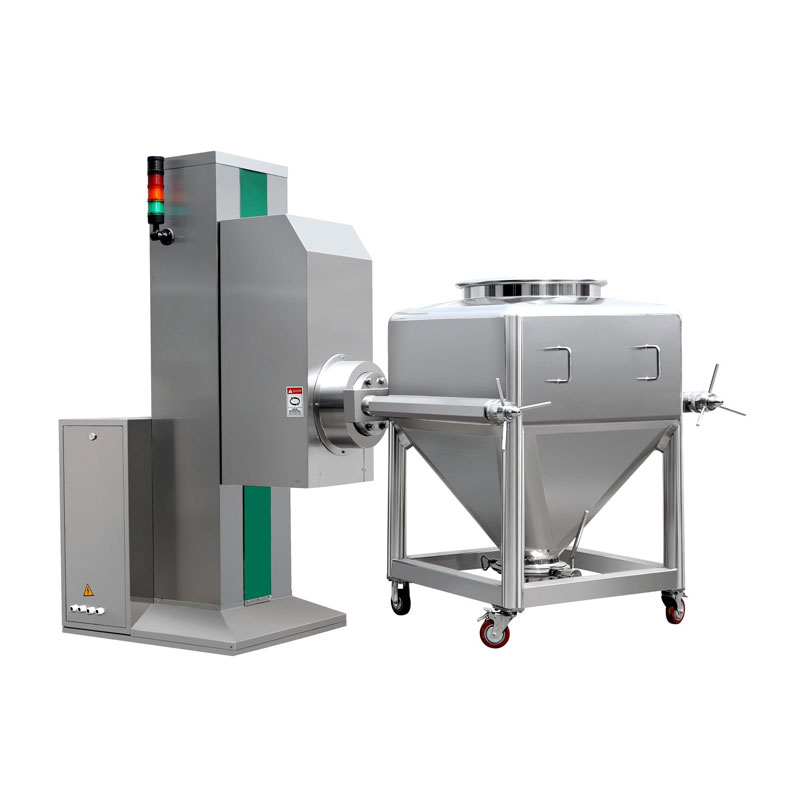

HTD柱式料斗混合機

Post bin blender

用途

該機具有自動提升、混合、下降等功能。配一臺料斗混合機及多個不同規格的混合料斗，就能滿足多品種不同批量的混合要求，是藥廠總混的理想設備。同時在制藥、化工、食品等行業廣泛使用。

APPLICATION

The machine is provided with such functions as automatic lifting mixing, lowering, etc. A hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of diversified varieties and different batches of products. It is an idealmachine for mixing in pharmaceutical plants. It is also widely used in such industries as medicine, chemical industry food, etc

原理

該機由立柱、機座、回轉叉架、驅動、制動、控制系統等部件組成。將混合料斗推入回轉叉架并鎖緊螺母，啟動控制系統，將料斗提升到混合高度并可靠定位。驅動系統按設定的時間、轉速等數據進行自動混合。混合作業結束，回轉叉架垂直停止，料斗自動下降到地面，整機停止，并打印工藝數據。松開回轉叉架的緊鎖螺母，將料斗推出到下一個工序。

PRINCIPLE

The machine is composed of column, machine base, rotation crotch, driving system, braking system, control system, etc. Push the mixing hopper into the rotation crotch and lock the nuts. Start the control system to lift the hopper to the mixing height and position it reliably. The driving system will carry out automatic mixing according to the set time, rotation speed and other data vertically, the hopper will automatically fall to the ground, the After the mixing operation is finished, the rotation crotch will stop machine will stop and process data will be printed. Loosen the locknuts of the rotary crotch and push the hopper out and transfer it to the next procedure

特點

◆料斗內壁光滑(Ra≤0.4μm)，無死角、易清洗、符合GMP要求。

◆放料閥有防誤裝置，密封可靠、可拆卸、易清洗。

◆PLC控制、變頻調速、觸摸屏操作、可設定工作轉速，工作時間等參數，并能自動定位、自動打印記錄和故障提示、報警。

◆占地面積小，而且安裝位置方便、靈活。

◆更換料斗方便。

FEATURES

The inner wall of the hopper is smooth(Ra≤0.4μm), no dead angle, easy to clean, in line with GMP requirements

The discharge valve has anti-missing device, reliable sealing detachable and easy to clean

PLC control, frequency control, touch screen operation, can set the working speed, working time and other parameters, and can automatically locate, automatically print records and fault prompts, alarms

The floor space is small, and the installation location is convenient and flexible

It is convenient to replace the hopper

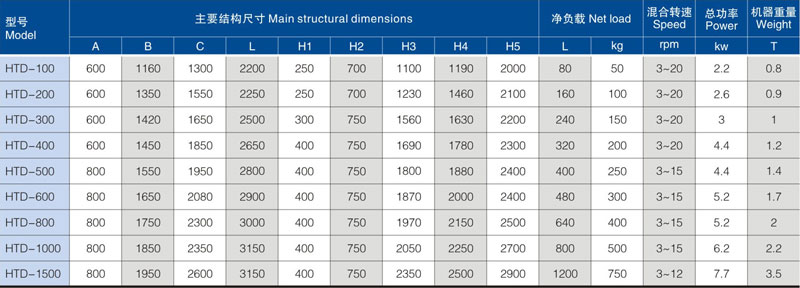

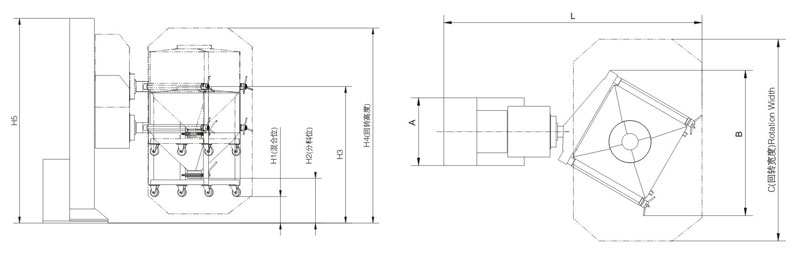

主要技術參數 MAIN TECHNICAL PARAMETERS

本公司可按用戶特殊要求定制生產，如有變動，恕不預先通知!

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
